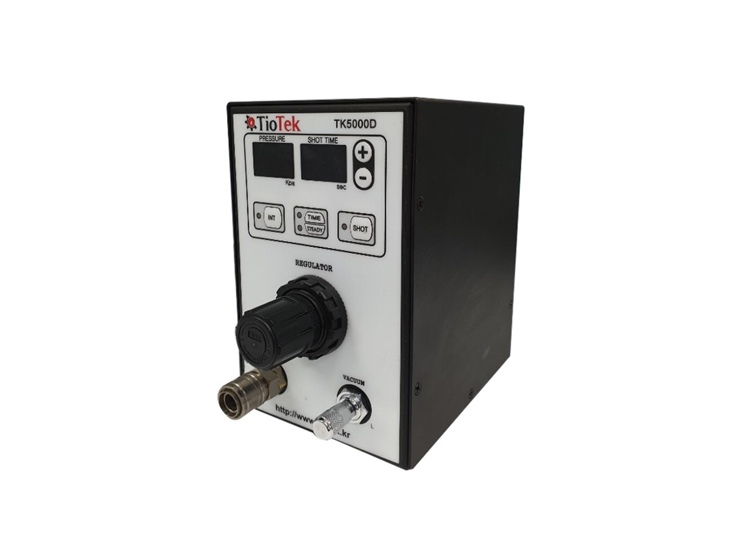

TK5000D
- Size: (W) 172 x (D) 138 x (H) 63 mm
- Power: AC220, 50/60Hz
- Power consumption: 10W (MAX)
- Supply air pressure: MAX 990 Kpar
- Air pressure control range:0.02~0.7 Mpa
- Discharge time adjustment range:0.001 ~ 99.9 Sec
- Motion type:TIMER movement(A quantitative discharge)
- STEADY movement:Continuous discharge
- INTERVAL movement:
An intermittent discharge (Stop time0.01~9.99 SEC)
- Input signal:FOOT SWITCH, FINGER SWITCH(OPTION)
- Voltage without voltage: N.O Contact, (Keep input signal)
- Input signal time:Min 0.05 SEC More than
- A discharge signal:N.O Relay Contact(DC24V, 500mA)
- VACUUM Function: There is
- Operating temperature: 5℃ ~ 40℃
- Weight: 2.5kg
